HengMi Expanded Metal Mesh Co. HengMi Expanded Metal Mesh Co.Aluminum Expanded Metal is made of high quality aluminum sheet/coil after being expanded on the automatic expanded machines. Aluminum mesh types including perforated mesh, expanded mesh, amplimesh, coiled and ring mesh, round hole mesh, checkered plate and aluminum gratings. Materials including aluminum, aluminum alloy, also stainless steel, galvanized, aluminum mesh discs can filter, strain and perform other essential tasks inside pipes, ducts and tubes.
It has the features of light weight, shining appearance, economical, slip-resistance surface, easily to be bent or formed in any direction.
Panel/Roll Width: 36inch, 1Metre, 48inch, 60inch
Panel/Roll Length: from 72inch until 150feet
Note: other Panel/Roll width or length can be made according to request.
According to the hole type
Large-hole aluminum mesh, small-hole aluminum mesh, hexagonal hole aluminum mesh, triangular hole aluminum mesh, micro aluminum mesh, perforated aluminum mesh, etc.
According to surface treatment
Alumina expanded mesh, fluorocarbon sprayed aluminum expanded mesh, PVC sprayed aluminum expanded mesh, powder sprayed aluminum expanded mesh, etc.
Application
ceiling aluminum mesh, curtain wall aluminum mesh, interior decoration aluminum mesh, etc.
We supply：
Aluminum expanded mini mesh 100micron wires 36% open area.
Micro mesh expanded aluminum drawing for type of expanded sheet
Fixing Expansion Aluminum Expanded Mesh
Aluminum diamond mesh expanded 1/8th hole size
Aluminum Expanded Metal – 24 x 3 Mesh, 7.2kg/m2, 16mm Thk. 15% Frontal opening Area
3mm thk 4x8 ft Aluminum Expanded Metal with SWD of 80mm and LWD of 20mm
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness | Opening in Width |
Opening in Length |
Stem |
Roll Width mm |
Roll Length mm |
Weight kg/m2 |
0.5 |
2.5 |
4.5 |
0.5 |
0.5 |
1 |
1.8 |
0.5 |
10 |
25 |
0.5 |
0.6 |
2 |
0.73 |
0.6 |
10 |
25 |
1 |
0.6 |
2 |
1 |
0.8 |
10 |
25 |
1 |
0.6 |
2 |
1.25 |
1 |
10 |
25 |
1.1 |
0.6 |
2 |
1.77 |
1 |
15 |
40 |
1.5 |
2 |
4 |
1.85 |
1.2 |
10 |
25 |
1.1 |
2 |
4 |
2.21 |
1.2 |
15 |
40 |
1.5 |
2 |
4 |
2.3 |
1.5 |
15 |
40 |
1.5 |
1.8 |
4 |
2.77 |
1.5 |
23 |
60 |
2.6 |
2 |
3.6 |
2.77 |
2 |
18 |
50 |
2.1 |
2 |
4 |
3.69 |
2 |
22 |
60 |
2.6 |
2 |
4 |
3.69 |
3 |
40 |
80 |
3.8 |
2 |
4 |
5.00 |
4 |
50 |
100 |
4 |
2 |
2 |
11.15 |
4.5 |
50 |
100 |
5 |
2 |
2.7 |
11.15 |
5 |
50 |
100 |
5 |
1.4 |
2.6 |
12.39 |
6 |
50 |
100 |
6 |
2 |
2.5 |
17.35 |
8 |
50 |
100 |
8 |
2 |
2.1 |
28.26 |
Small Opening Aluminum Expanded Mesh for Filter
Alumina Expanded Mesh for Building Facade
Aluminum Expanded Mesh for Ceiling

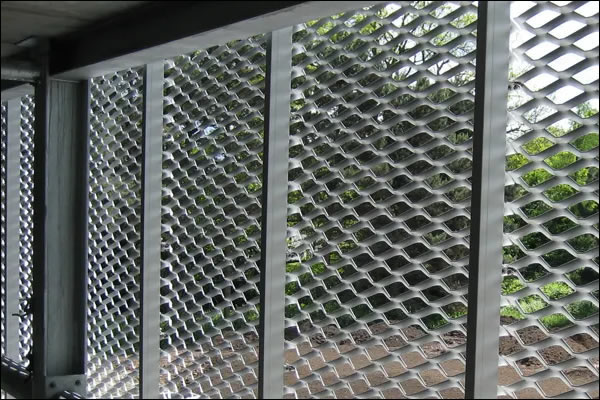

Decorative Mesh, Diamond Aluminum Sheet, As Fencing Aluminium Mesh Decoration, Aluminum Mesh Partition
