Expanded Metal Anti-Cut Fence with diamond shaped holes top anti-climb barbed razor wire and Galvanized expanded mesh razor wire fence

We supply expanded metal fence to enclose railway track and reduce noise pollution (noise reduction between 5 to 10 dB). Expanded metal fencing systems are designed for a number of applications from perimeter demarcation to the highest level of security, mainly used in construction of highway, railway, civil construction and water conservation; also fencing of machinery, electric appliances or windows and aquatic products breeding, etc.

Features / Benefits:
Expanded metal fence is difficult to penetrate and scale, and more aesthetically pleasing than palisade or chain link It is also strong and durable and easy for installation. We also offer expanded metal fence with the razors build in anti-climb.expanded metal type fence with diamond shaped holes, too small to climb, heavy duty "cyclone" type fencing with smaller openings.

Expanded metal fence fabrics is extensively used for sports field, tennis courts, expressway, railway and other sites. galvanized expanded metal will be incorporated into a fence design and buried in the ground to serve as a barrier to digging rodents. Listed below are approximate specifications.

3' SWD x 10' LWD
294 sheets

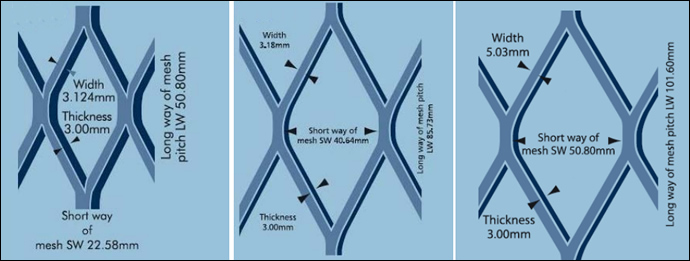

3/4" or 1" width of diamond (1-1/2 to 2" length of diamond)
#9 or #10# standard (regular)
Galvanized.

sheets of expanded metal which we powder coat then attach to our fencing. The three items that we use most frequently are:
½” x #16
¾” x #9
2” x #9

carbon steel and are usually flattened. The sheet sizes that we usually are:
4’ x 8’
4’ x 10’
5’ x 8’
5’ x 10’

Expanded Metal Security Fence with Barbed Wire

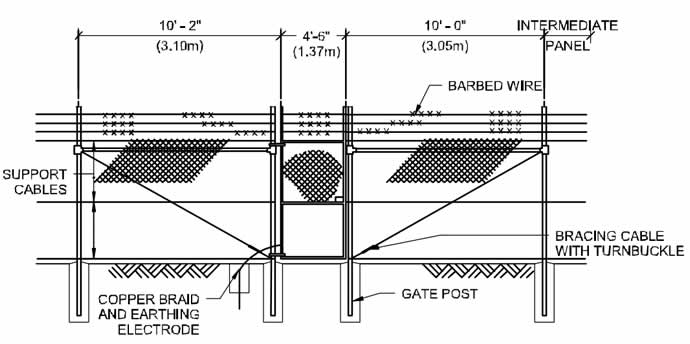

Attached is a drawing of expanded metal style security fence with two gates

Expanded metal Fence as per BS 1722 Part 14, Mesh Size: 1 inch or 2 inch, Single wire, Mesh height 8 Feet



Channel

• Channel for water industries
• Prohibits trespass & vandalism



Electra

• For electricity industries
• Prohibits trespass & vandalism



Fastrack

• Specific design for rail industry
• Simple installation
• Deterrent to criminal trespass and vandalism



Primary

• Designed specifically for schools
• Excellent through vision
• Colourful powder coating available



Diamond

• The original Expamet Fencing System
• Versatile - used in all sectors
• Secure alternative to palisade or chain link fencing



Fixafence

• Existing posts can be used
• Upgrade to modern security standards
• Cost effective installation



Hy Security

• Difficult to penetrate and scale
• Improved aesthetics
• Ease of installation



Super Security

• Total perimeter system
• Maximum level of security
• Unique parallel mesh strand
